DEP MeshWorks enables high quality QUAD, TRIA, TETRA, HEXA meshing
Highly automated meshing functions to create exceptional quality meshes with minimal user intervention in the shortest time possible

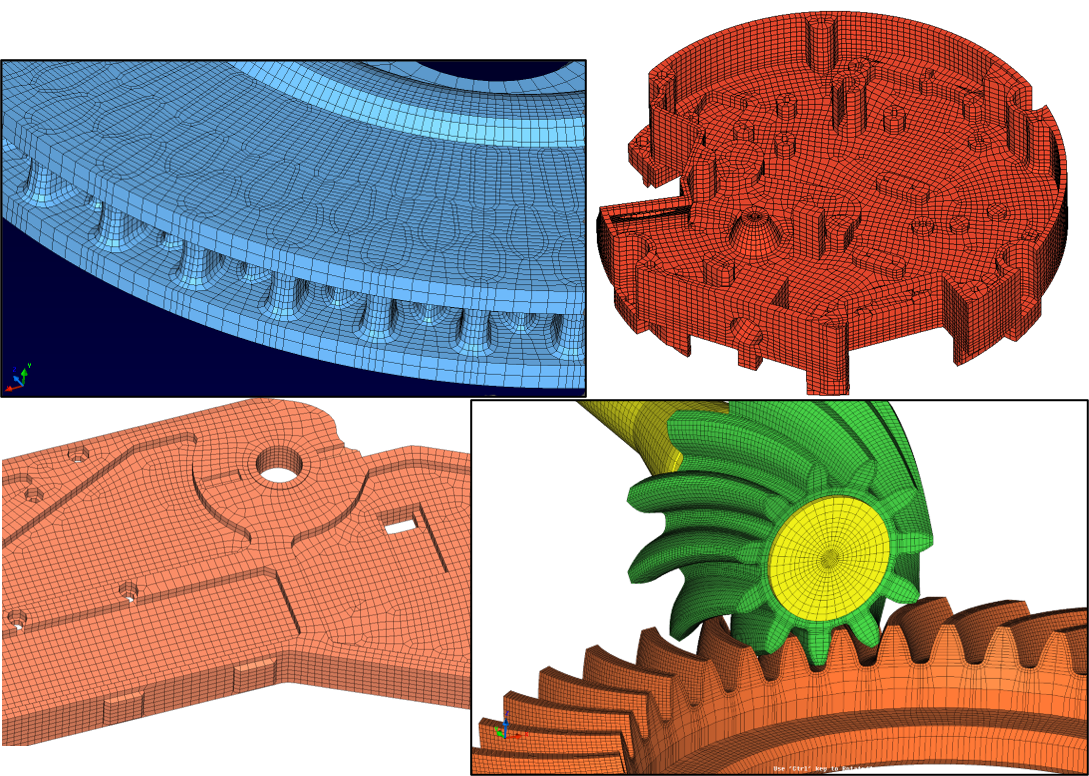

HEXA Meshing strategies of DEP MeshWorks
DEP MeshWorks has a powerful CAE meshing engine that allows users to create 2D and 3D meshes rapidly from complex CAD data.
Depending on your expectations regarding the ratio time spent for meshing over quality of the output, DEP MeshWorks is always having a solution.
For instance in one hand, the "One click HEXA mesher" will create a cavity of your volume and automatically morph and adjust the borders of your component in few seconds.
In the other hand, users can achieve a high-quality mesh in significantly less time with DEP MeshWorks functions when compared to traditional meshing applications.

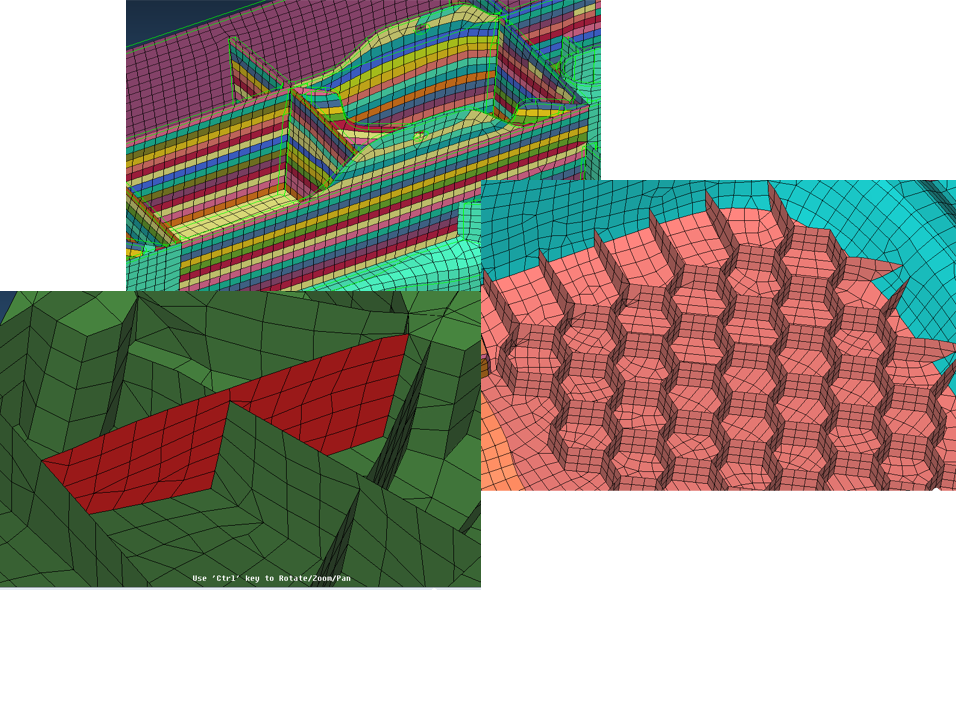

HEXA cutter
The "HEXA cutter" is a unique feature of DEP MeshWorks enabling to update your HEXA meshes in the third direction according to CAD curves, 1Ds, etc.
If necessary print holes, special features directly on your already generated HEXA mesh.
If necessary print holes, special features directly on your already generated HEXA mesh.
Thin-wall HEXA mesher
The "Thin-wall HEXA mesher" can rapidly convert a mid-plane QUAD dominant mesh to a HEXA-dominant mesh. Users can combine all of the HEXA mesher functions to generate a geometry hugging HEXA dominant mesh with minimal number of PENTA elements.
HEXA cutter
The "HEXA cutter" is a unique feature of DEP MeshWorks enabling to update your HEXA meshes in the third direction according to CAD curves, 1Ds, etc.
If necessary print holes, special features directly on your already generated HEXA mesh.
If necessary print holes, special features directly on your already generated HEXA mesh.
Thin-wall HEXA mesher
The "Thin-wall HEXA mesher" can rapidly convert a mid-plane QUAD dominant mesh to a HEXA-dominant mesh. Users can combine all of the HEXA mesher functions to generate a geometry hugging HEXA dominant mesh with minimal number of PENTA elements.

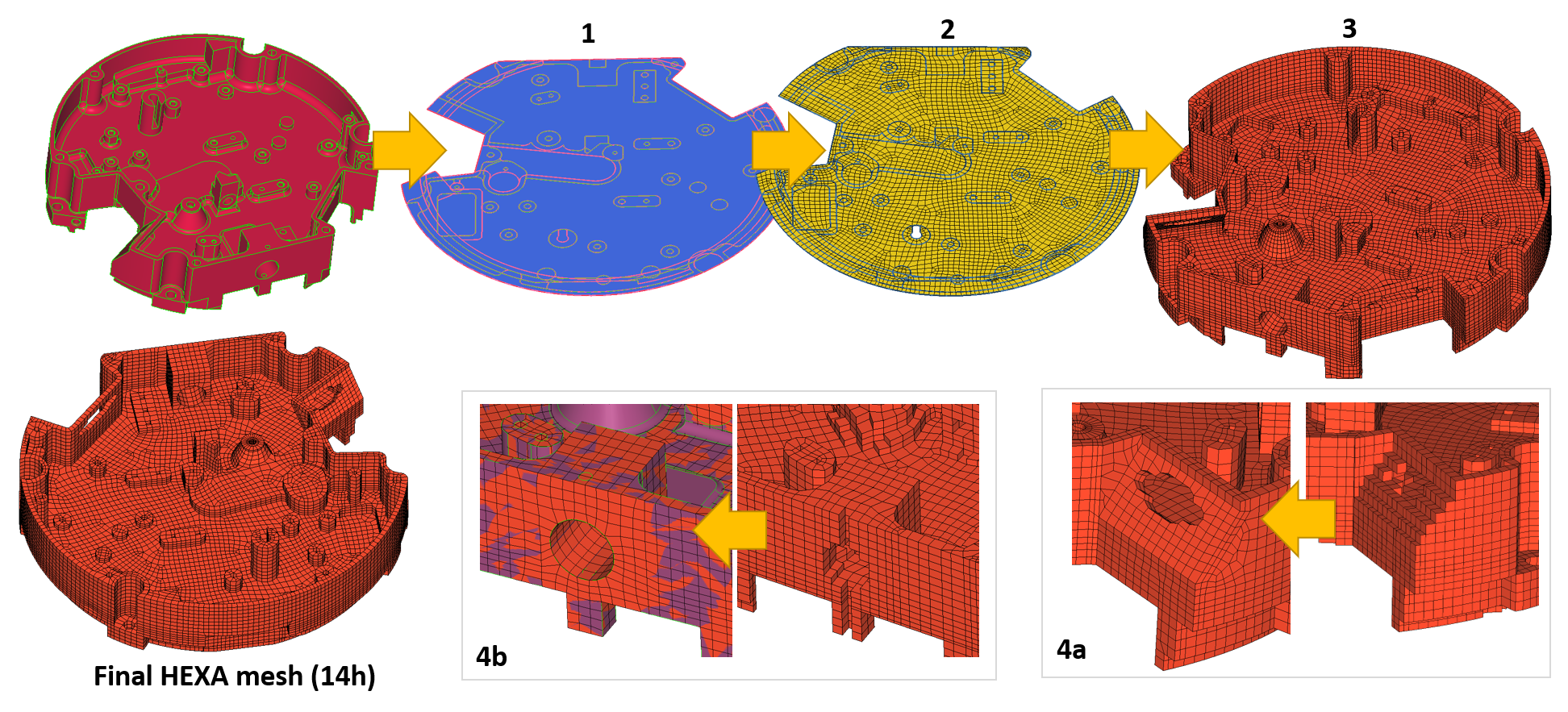

DEP MeshWorks semi-automated methodology for high complexity components with high mesh quality criteria request

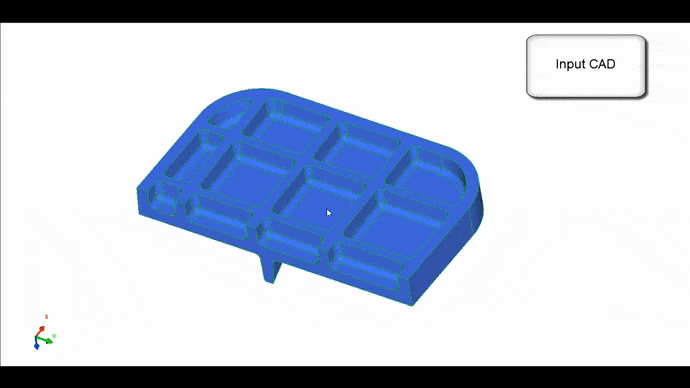

STEP0 - Import your CAD
STEP1 - Project the feature lines of your CAD on a plane
STEP2 - Using the shell mesh generator of MW, ensure 100% QUADs quickly & interactively
STEP 3 - Using the "Extruded Hex mesher", automatically fill in less than a minute your initial CAD
STEP4 - Using the "HEXA cutter", "Propogate HEXA", "HEXA element edit", morphing tools and etc, update in few clicks your extruded HEXA mesh in the third direction
STEP5 - Perfect the quality of your output using the quality correction tools to obtain 100% HEXA even for most complicated parts.
STEP1 - Project the feature lines of your CAD on a plane
STEP2 - Using the shell mesh generator of MW, ensure 100% QUADs quickly & interactively
STEP 3 - Using the "Extruded Hex mesher", automatically fill in less than a minute your initial CAD
STEP4 - Using the "HEXA cutter", "Propogate HEXA", "HEXA element edit", morphing tools and etc, update in few clicks your extruded HEXA mesh in the third direction
STEP5 - Perfect the quality of your output using the quality correction tools to obtain 100% HEXA even for most complicated parts.
DEP MeshWorks semi-automated methodology for high complexity components with high mesh quality criteria request
STEP0 - Import your CAD
STEP1 - Project the feature lines of your CAD on a plane
STEP2 - Using the shell mesh generator of MW, ensure 100% QUADs quickly & interactively
STEP 3 - Using the "Extruded Hex mesher", automatically fill in less than a minute your initial CAD
STEP4 - Using the "HEXA cutter", "Propogate HEXA", "HEXA element edit", morphing tools and etc, update in few clicks your extruded HEXA mesh in the third direction
STEP5 - Perfect the quality of your output using the quality correction tools to obtain 100% HEXA even for most complicated parts.
STEP1 - Project the feature lines of your CAD on a plane
STEP2 - Using the shell mesh generator of MW, ensure 100% QUADs quickly & interactively
STEP 3 - Using the "Extruded Hex mesher", automatically fill in less than a minute your initial CAD
STEP4 - Using the "HEXA cutter", "Propogate HEXA", "HEXA element edit", morphing tools and etc, update in few clicks your extruded HEXA mesh in the third direction
STEP5 - Perfect the quality of your output using the quality correction tools to obtain 100% HEXA even for most complicated parts.
Why use DEP MeshWorks for TETRA Meshing?
Highly automated meshing functions available in DEP MeshWorks allow users to create exceptional quality meshes with minimal user intervention in the shortest time possible, with minimal to virtually no CAD clean-up. Template based meshing allows users to set-up templates for feature recognition, mesh size requirements and quality criteria. Highly automated mesh quality improvement functions, robotically correct meshes to meet user specified quality templates and constraint criteria.
DEP MeshWorks is the best in class for volumetric meshes on the market.
DEP MeshWorks is the best in class for volumetric meshes on the market.
Why use DEP MeshWorks for TETRA Meshing?
Highly automated meshing functions available in DEP MeshWorks allow users to create exceptional quality meshes with minimal user intervention in the shortest time possible, with minimal to virtually no CAD clean-up. Template based meshing allows users to set-up templates for feature recognition, mesh size requirements and quality criteria. Highly automated mesh quality improvement functions, robotically correct meshes to meet user specified quality templates and constraint criteria.
DEP MeshWorks is the best in class for volumetric meshes on the market.
DEP MeshWorks is the best in class for volumetric meshes on the market.

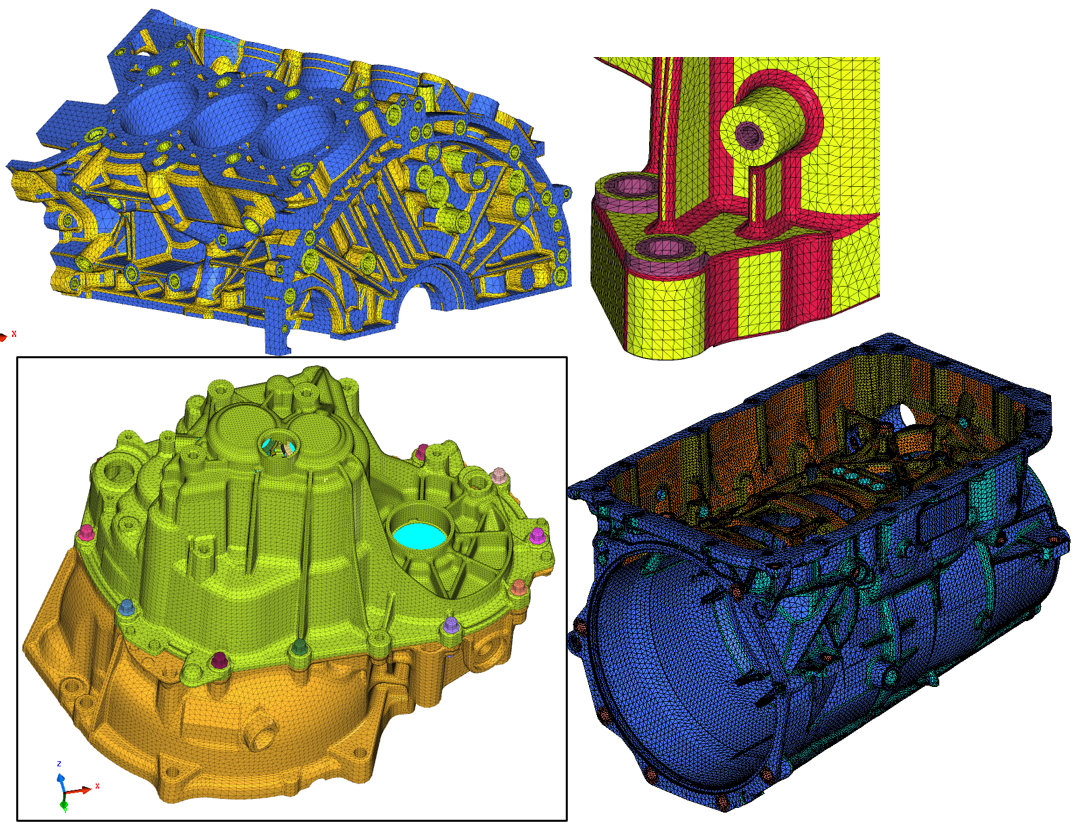

TETRA Meshing
The automated TRIA & TETRA mesher generates meshes that meet element quality requirements and mesh flow conditions in regular regions and special regions such as fillets, holes etc. Structural & CFD meshes are generated efficiently with flexibility of using several control parameters to generate meshes to suit the CAE engineers’ specialized requirements.
TETRA mesh can be controlled by a variety of factors such as gradation factor, layered tetra mesh, growth rate etc.
TETRA mesh can be controlled by a variety of factors such as gradation factor, layered tetra mesh, growth rate etc.

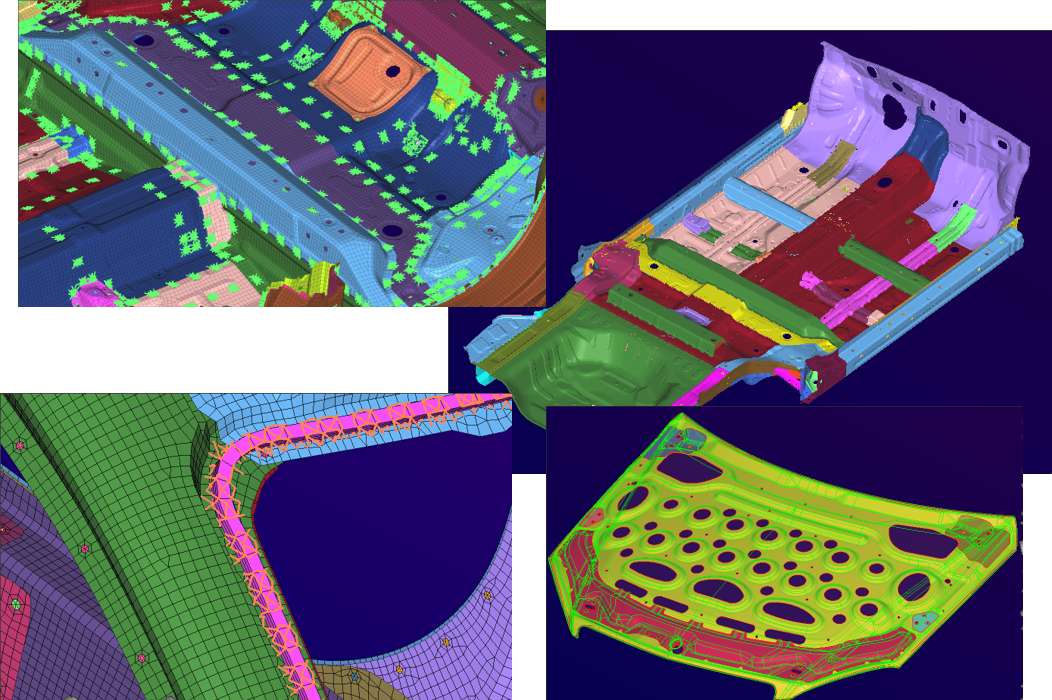

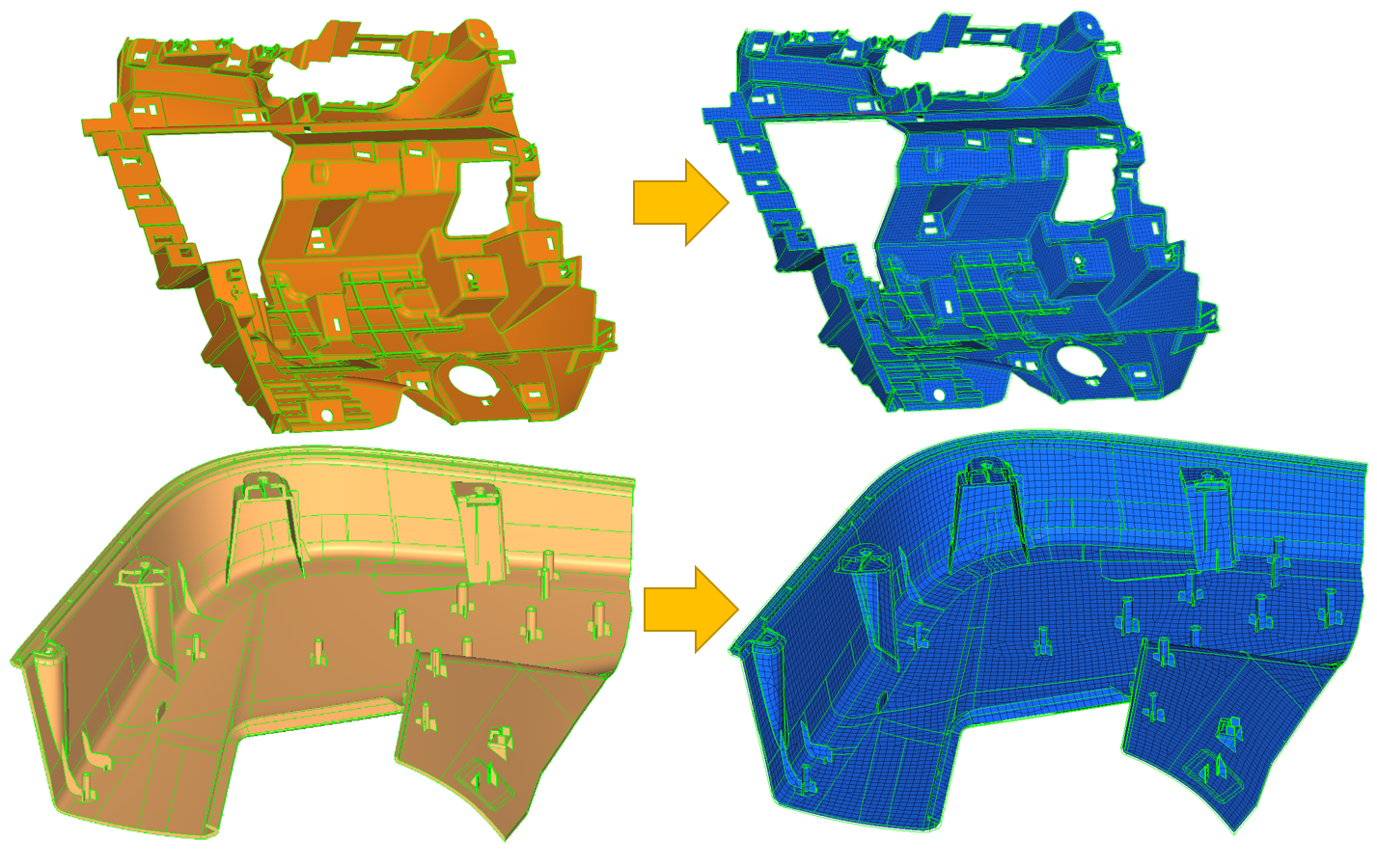

QUAD Meshing (Sheet metal)
DEP MeshWorks allows to obtain a high quality QUAD mesh that can be controlled through templates with the most advanced quality controls.
The automated QUAD dominant mesher generates QUAD dominant meshes with minimal TRIA meeting element quality requirements, providing good mesh flow, meeting specialized meshing requirements around holes, fillets, flanges, beads etc. and excellent control over element size requirements.
The automated QUAD dominant mesher generates QUAD dominant meshes with minimal TRIA meeting element quality requirements, providing good mesh flow, meeting specialized meshing requirements around holes, fillets, flanges, beads etc. and excellent control over element size requirements.

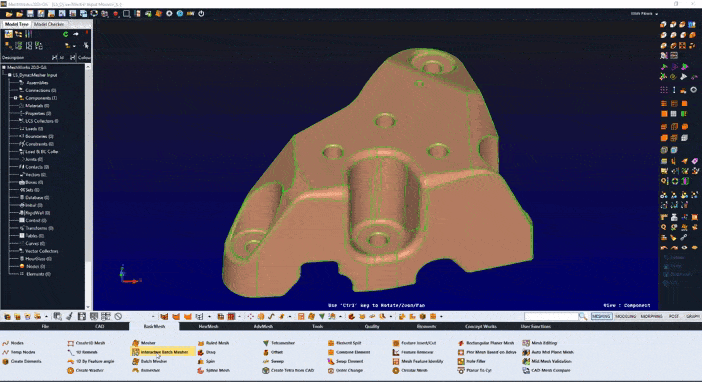

QUAD Mid-Plane Meshing (Plastics)
A set of automated and powerful interactive meshing functions in DEP MeshWorks allow users to create Mid-Plane meshes of complex plastic and casting parts with ribs and other intersecting features. Variable thicknesses of the CAD are automatically assigned to the mesh by DEP MeshWorks.
QUAD Mid-Plane Meshing (Plastics)
A set of automated and powerful interactive meshing functions in DEP MeshWorks allow users to create Mid-Plane meshes of complex plastic and casting parts with ribs and other intersecting features. Variable thicknesses of the CAD are automatically assigned to the mesh by DEP MeshWorks.
Model Building using DEP MeshWorks
Automatic 1D Bolt connection creation
A wide variety of bolted assembly connection elements can be automatically created. These involve a) through bolts, b) screws, c) detailed metric bolt modeling, d) bolt connections with beams/rigids etc.
Conventionally creating 20 bolts along with pretension sections would take 3.5 hours. Using DEP MeshWorks flow, one can do the same task in less than 30 minutes.
Conventionally creating 20 bolts along with pretension sections would take 3.5 hours. Using DEP MeshWorks flow, one can do the same task in less than 30 minutes.
Automatic 3D Bolt connection creation
The steps in DEP MeshWorks are:
- By selecting multiple centre nodes and bolt definition, it is possible to create multiple bolts with Pre-tension sections and values in a single click.
- While creating bolt we can define bolt geometry like size, type of bolt, washer layers etc. and property definitions.
Why choose DEP MeshWorks for meshing?

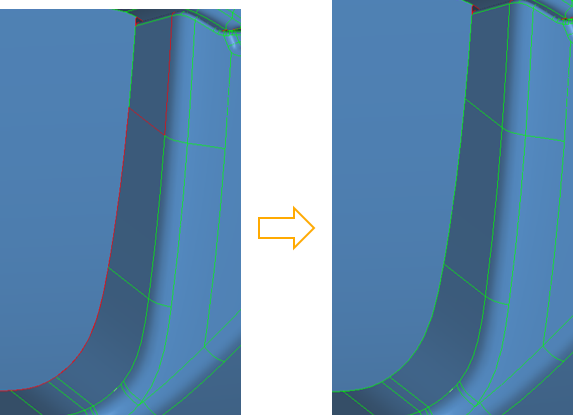

Automatic CAD Clean-Up
Even though CAD clean-up requirement is minimal to nil, DEP MeshWorks offers a CAD engine with an extensive set of CAD functions for curve, surface and solid editing and manipulation.
If wanted, removes all the unnecessary features and retaining the main feature lines.
If wanted, removes all the unnecessary features and retaining the main feature lines.
Patented parametric meshing
The patented parameterization technology of DEP MeshWorks transforms the meshes automatically into parametric during the meshing process itself.
The mesh generated is highly associative to the CAD geometry. This allows for highly automated update of the mesh as and when the CAD geometry changes and vice versa.
The mesh generated is highly associative to the CAD geometry. This allows for highly automated update of the mesh as and when the CAD geometry changes and vice versa.
Integrated meshing
Meshing templates corresponding to different attributes such as stress/durability, stiffness/NVH etc. can be assigned in DEP MeshWorks to the CAD data. As a result meshes corresponding to all the different attributes can be generated from one single model eliminating the need for duplicated effort.
